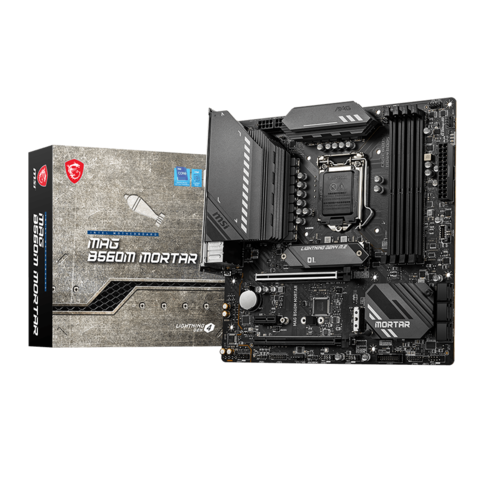

Motherboard MSI MAG B560M MORTAR LGA1200

PROCESSOR

Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors

Processor socket LGA1200

CHIPSET

Intel B560 Chipset

MEMORY

• 4 x DDR4 memory slots, support up to 128GB
  • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
  • Max overclocking frequency:
    • 1DPC 1R Max speed up to 5066+ MHz
    • 1DPC 2R Max speed up to 4600+ MHz
    • 2DPC 1R Max speed up to 4266+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel Extreme Memory Profile (XMP)

EXPANSION SLOT

• 2x PCIe x16 slots
  1. Support x16/ x4
  2. PCI_E1 (from CPU)
     1. Support up to PCIe 4.0 for 11th Gen Intel CPU
     2. Support up to PCIe 3.0 for 10th Gen Intel CPU
  3. PCI_E3 (From B560 chipset)
     1. Support up to PCIe 3.0
• 1x PCIe 3.0 x1 slot
  1. PCI_E2 (From B560 chipset)
  2. PCI_E3 will be unavailable when installing M.2 SSD in M2_2 slot. However, if you want to use both of them simultaneously, you can set x1 for PCI_E3 and set x2 for M2_2 in BIOS.

ONBOARD GRAPHICS

• 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
• 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz

MULTI-GPU

• Supports 2-Way AMD CrossFire Technology

STORAGE

• 6x SATA 6Gb/s ports (from B560 chipset)
• 2x M.2 slots (Key M)
  • M2_1 slot
    1. Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU)
    2. Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset)
    3. Supports 2242/ 2260/ 2280 storage devices
  • M2_2 slot (From B560 chipset)
    1. Supports up to PCIe 3.0x4
    2. Supports 2242/ 2260/ 2280 storage devices
    3. Intel Optane Memory Ready
  • Supports Intel Smart Response Technology for Intel Core processors
• Supports Intel Smart Response Technology for Intel Core processors

USB

Intel B560 Chipset

• 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel)
• 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector)
• 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 connector
• 4x USB 2.0 ports on the back panel

USB Hubs ASM1074

• 3x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Hub-GL850G

• 4x USB 2.0 ports are available through the internal USB 2.0 connectors

AUDIO

Realtek ALC897 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1x Realtek RTL8125B 2.5Gbps LAN controller

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x 4-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 2x M.2 slots (M-Key)
• 1x USB 3.2 Gen 2 10Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 2x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x TPM module connector
• 1x Tuning Controller Connector
• 1x TBT connector (Supports RTD3)

LED FEATURE

• 1x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 4x EZ Debug LED

BACK PANEL PORTS

1. USB 2.0
2. DisplayPort
3. USB 3.2 Gen 1 5Gbps Type-A
4. 2.5G LAN Port
5. HD Audio Connectors
6. HDMI
7. USB 3.2 Gen 2x2 20Gbps Type-C
8. USB 3.2 Gen 1 5Gbps Type-A
9. Optical S/PDIF OUT
