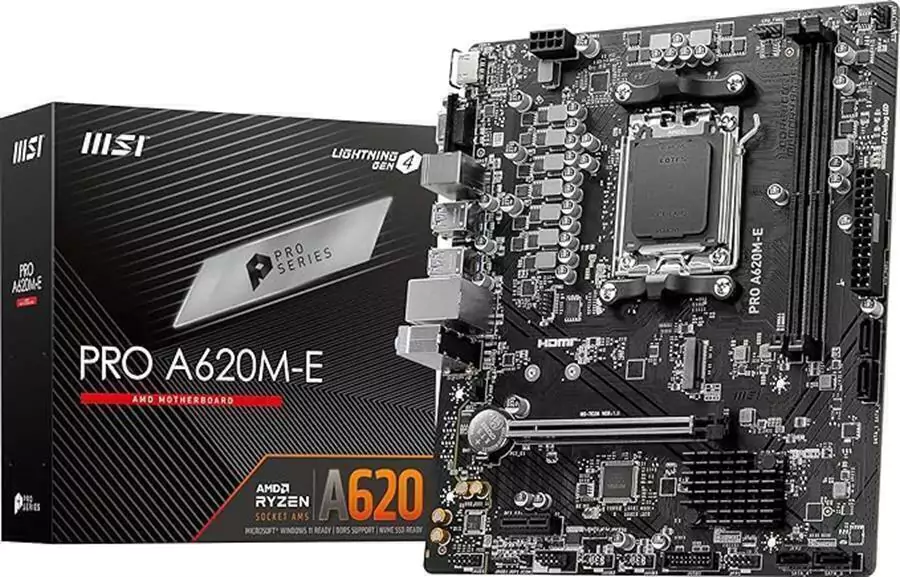

MOTHER MSI AM5 PRO A620M-E ATX

CHIPSETAMD A620CPUSupports AMD Ryzen™ 8000/ 7000 Series Desktop ProcessorsSocket AM5MEMORY2x DDR5, Maximum Memory Capacity 128GBMemory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 6800+ MHz• 1DPC 2R Max speed up to 6000+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports AMD EXPOAUDIORealtek® ALC897 Codec7.1-Channel High Definition AudioSTORAGE1x M.2 (Qty)M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices4x SATA 6G (Qty)LANRealtek® RTL8111H Gigabit LANONBOARD GRAPHICS1x HDMI™Support HDMITM 2.1, maximum resolution of 4K 60Hz*1x D-SubSupport VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.SLOT1x PCI-E x16 slot (Qty)• Supports x16 (For Ryzen™ 7000 Series processors)• Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)• Supports x4 (For Ryzen™ 5 8500G processor)1x PCI-E x1 slot (Qty)PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)RAIDSupports RAID 0, RAID 1 and RAID 10 for SATA storage devicesUSB2x USB 2.0 (Rear)4x USB 2.0 (Front)4x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)INTERNAL IO1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A portsLED FEATURE4x EZ Debug LEDBACK PANEL PORTSHDMI™VGAKeyboard/MouseUSB 3.2 Gen 1 5Gbps (Type-A)LAN portAudio connectorsUSB 2.0OPERATING SYSTEMSupport for Windows® 11 64-bit, Windows® 10 64-bitPCB INFOmATX211mmx243.84mm
