[GROUPBUY] WIRED - MKC75 Green

MKC75

Groupbuy: 10/08 al 05/09
Entrega estimada:  Q1 a Q2 2024

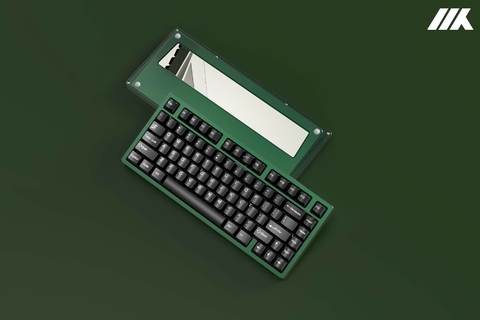

With the three-in-one structural design, which supports plate gaskets, PCB gaskets, and Top Mount structure, it provides multiple options to customize your keyboard. Thanks to the consistent frame of the compact 75% layout, it makes the three mounting systems perfectly compatible.

• Compact 75% layout
• Supports Alu Internal Weight
• Multiple configurations available
• Supports Caps Lock Indicator Light
• 100% processed using CNC machining with 6063 aluminum case
• Supports Plate, Half Plate and Plateless Build
• Three-in-one structural design (Top Mount, Plate Gasket Mount and PCB Gasket Mount )
• Supports Rotary Knobs and LED Light Signs, which are also compatible with JRIS75 Rotary Knob/ Badge /LED Light Sign
• Typing angle: 7°
• Front height: 18.5 mm
• Material: Full CNC 6063 aluminum
• Dimension: 320*134.4*33mm
• Three-in-one Structure: TOP Mount / Plate Gasket Mount / PCB Gasket Mount
• QMK/VIA Supported（wired）
• Support PCB stabilizers

PCB Options:

• Wired Flex Cut Hotswap PCB (1.2mm, ISO & ANSI support, 7u split spacebar, No Per-key RGB, support QMK and VIA)
• Solder PCB / Wired Non-Flex Cut Hotswap PCB (1.6mm, ISO & ANSI, 7u split spacebar, No Per-key RGB, support QMK and VIA)
• ADD-ON ONLY PCB: Wired Per-Key RGB Hotswap PCB (1.6mm, Non-Flex Cut, ANSI Layout, support QMK and VIA)

WHAT'S INCLUDED:

• Full CNC Aluminum Top case *1
• Full CNC Aluminum Bottom case*1
• Weight (Anodized Alu Weight or Stainless steel PVD Weight) *1
• Plateless or Plate *1
• PCB *1
• IXPE Foam *1
• Poron Case Foam *1
• Poron Plate Foam *1
• Type-C Daughterboard with JST Cable *1
• PCB GAS Silicone Column *12
• Plate GAS Silicone Sock *18
• Top mount screw and spacer *12
• PCB stabilizers o-ring *12
• Footpad *6
• Poron case strip *6
• 1.6mm hex key *1

MYKEYCLUB GIFT (will not send make-up or replacements)

• 1 Pack of Extra Screw
• M2x3mm cylindrical head screw *2
• M2x8mm cylindrical head screw *2
• M3x12mm countersunk screw *2
• M3x6mm countersunk screw *2
