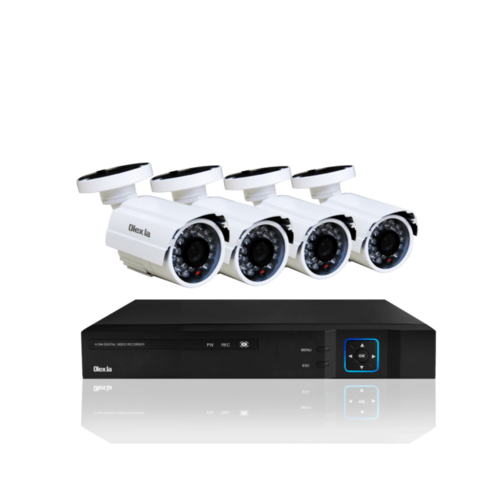

Combo de seguridad OLEX-KHD654

Main Features• AHD/CVI/TVI/IP/Analog input camera• Up toHD 5MP and IP 8MP record with resolution• HDMI, VGA and CVBS video output• Max. 16CH HD or 16CH IP input camera• 1 SATA and up to 6TB and 1 E-SATA 6TB of capacity•Resolution: 1920*720•Color 1/4" HD-AHD•CCD Sensor, 720P•AHD DVR compatible•PAL: 25fps/960P•NTSC: 30fps/960PDownload Spec HerePackaging Content• DVR Olex.la.•Olex.la Camera• Manual installation• ScrewsTechnical SpecificationsCameraImage sensor1/3"CCDImage resolution720PEffective pixels1920(H)×720(V)Video Frame RatePAL: 25fps/960P NTSC: 30fps/960PElectronic shutter time000SecSync SystemInternoIluminación usable0.01Lux/F2.0S/N Ratio≥50dBScan systemProgressiveVideo OutputSalida de video de Alta definición 1-channel BNC HDAHDLenteFocus length3.6mm/6mmLens typeBoard LensNight VisionDay/nightAuto/color/B&WMax length IR LED36 IRIR LEDAuto: PAL 1/50-1/100,000Sec;NTSC 1/60-1/100Noise reduction2D NRIR distance20mMax IR36 IRGeneralWheaterproofIP66Transmission distanceMas de 200m via cable coaxial 75-3Voltage inputDC12V±10%IR cut filter12V Max 4WEnergy consumption12V Max 4WWorking temperature-10ºC~ +50ºC cRH95% MaxStorage temperature-20ºC~ +60ºC RH95% MaxDVRSpecificationsSystemMain processorHI3521AOperative SystemEmbedded LINUXVídeoInputAnolog: 4*1080NAnolog+Network: 2*Anolog(1080N)+4*networkNetwork: 9*1080P/960P/720P(Total incoming bandwidth ≤46M)Input4CH BNCSignal TypeAnolog/AHD/CVI/TVI 2.0/NetworkOutput1 HDMI,1 VGA, 1CVBSAudioInput4 channels. RCATwo-way audioNOOutput1 canal, RCAAlarmSensor inputNOOutputNOMovement detection4 channels (max16 channels into network mode)Trigger eventsgrabación, Email, recomendaciones de pantalla, zumbadorEmail alarmSend the image to the designted emailPTZInterfaceRS485ProtocolPelco-D, Pelco-PBaud rate110~921600Direction0~255DisplayVGAResolution: 1920 × 1080P /60Hz,1280 × 1024 /60Hz, 1280 ×720 /60Hz,1024 × 768 /60HzHDMIResolution:2560*1440/30Hz,1920 × 1080P /60Hz, 1280 ×1024 /60Hz, 1280 × 720 /60Hz,1024 × 768 /60HzDisplay split16 channels/ 9 channels/ 8 channels/ 4 channels/  1 channelPrivacy masking1 rectangular zoneOSDcamera title, time, video loss, alarm, movement detection, recordRecordingVideo compressionH.264Audio compressionG.711AResolution5MP(2592×1944),5MP_HALF(1296×1944),4MP(2560×1440),4MP_HALF(1280×1440),3MP(2048×1536),1080P(1920×1080),720P(1280×720),960H(P:960×576/N:960×480)Video qualityworst/worse/ordinary/well/bestVideo recordAnalog: PAL:5MP(2592×1944 4*12fps),5MP_HALF(1296×1944 4*20fps),4MP(2560×1440 4*15fps),4MP_HALF(1280×1440 4*25fps),3MP(2048×1536 4*18fps);1080P(1920x1080 4*25fps),720P(1280×720 4*25fps),960H(960×576 4*25fps)NTSC: PAL:5MP(2592×1944 4*12fps),5MP_HALF(1296×1944 4*20fps),4MP(2560×1440 4*15fps),4MP_HALF(1280×1440 4*30fps),3MP(2048×1536 4*18fps),1080P(1920x1080 4*30fps),720P(1280×720 4*30fps),960H(960×480 4*30fps)Pure IP: PAL:4k@6×25fp,5MP@8×25fp,4MP@11x25fp,3MP@11×25fp,1080P@16×25fp,960P@16×25fp,720P@16×25fp,NTSC: 4k@6×30fp, 5MP@8×30fp,4MP@11×30fp,3MP@11×30fp,1080P@16×30fp,960P@16×30fp,720P@16×30fp, D1@16×30fpRecord modeManual\Timer\Motion DetectionPlayback and BackupSync playbackPure analog: 4CH 4M@15fps, 4CH 3M@18fps,4CH 1080p@30fpsMix Mode: 2CH 1080P@30fps+1CH 1080N@12fpsPure IPC: 1CH 4K@30fps,1CH 5MP@30fps, 2CH 4MP@30fps,3CH 3M@30fps, 4CH 1080P@30fps,4CH 960P@30fps, 4CH 720P@30fpsAutomatic playback4 canalesSearch modeALL, channel, manual, time, date, movement detectionPlayback functionPause, stop, forward, rewind, fast forwardSmatphone playback4 channelsBackup typeUSB Device/NetworkNetworkInterface1 RJ45 10M/100M Adaptive Ethernet InterfaceNetwork funcionsHTTP, IPv4,IPv6, TCP/IP,SMTP, DHCP, DNS, PPPOE,DDNS, NTP, FTP, UPNPDDNSDyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYESWeb browserIE8-11, Google Chrome (IE Tab), Firefox (IE Tab)CMS SoftwareSupport Windows 7/ Windows 8/ Windows 10Extra StreamCIF(1~15fps)SmartphonesiPhone, ipad, Android, Android padHard Disk DriverInterface type1 SATA InterfaceCapacity3.5" SATA, Up to 6TBGeneralLanguageChinese, English, polish, Czech, Rusian, Thai, Hebrew, Arabic, Bulgarian, Japanese, German, French, Turkish, Portuguese, Spanish, Italian, Hungarian, Rumanian, Korean, Dutch, Greek,Control UTCYESUSB Interface2 USB 2.0 InterfacesEnergy consumptionAC 115~230v ≤35W(no hard driver)Entorno de funcionamiento-10~55°C/10~90%Dimensions260*215*43(mm)
